Home Backup & Hybrid Storage

From power grid break to family recovery, there's a control logic for every move.

The establishment of a phased back-up process from power outage identification, off-grid switching, black start-up to grid restoration, subject to key load priority, energy storage, photovoltaic availability and grid-connected conditions, will allow household electricity to be provided not just as a “battery”, but as a verifiable energy system.

View System Scheme Appointments for engineering evaluation

Key Load Priority Safety of life, communications and family core equipment.

millisecond control logic Power outages are identified, isolated, and can be taken over logically.

Backup power management Dynamic retention SOC, safe capacity and recovery residual.

The power is restored in an orderly manner. Reconstruction of the electricity grid and gradual and phased recovery of loads.

System Topology Line Chart

Grid Connection Status Utility Grid

meter / metering Revenue Meter

Isolation. Isolation Switch

Mixed Reverser / PCS PV + Battery

ATS / Ready to switch Hybrid ATS

Main distribution panel Main Panel

Power outage event recorder A complete interruption and recovery process

1 The grid is working. 05-18 18:22:10

2 The voltage is abnormal. 18:22:10.012

3 Power grid isolation 18:22:10.026

4 Take over. 18:22:10.045

5 Dynamic limit 18:22:15.110

6 Photovoltal recovery 18:24:00.530

7 The grid is good. 18:26:31.880

8 Synchronize 18:26:32.210

Trigger condition	Test Action	Power grid isolation	Insular power supply	Dynamic limit	Photovoltal recovery	Synchronization gate
Pressure / Frequency Abnormal	Confirm the limit.	Open mesh switch	PCS Create AC Master	Switch by load priority	Input after condition is met	Pressure / Frequency / Phase Check

It's not a battery, it's a power priority.

Load Priority Project Sheet Presentation

Device / Load	Activate Power	Continuous Power	Priority	SOC 100%	SOC 60%	SOC 40%	SOC 20%
Refrigerator	0.6 kW	0.15 kW	A1	5.5h	4.4h	3.3h	1.1h
Lighting	0.1 kW	0.10 kW	A1	27.5h	22h	16.5h	5.5h
Network / Router	0.1 kW	0.05 kW	A1	110h	88h	66h	22h
Kitchen basic equipment	0.8 kW	0.40 kW	A1	13.8h	11h	8.3h	2.8h
Water pumps	1.5 kW	0.60 kW	A2	9.2h	7.4h	5.5h	1.8h
Air conditioning	5.2 kW	1.20 kW	B1	4.6h	3.7h	2.8h	0.9h
EV Charge	7.0 kW	7.00 kW	C	1.2h	0.9h	0.7h	0.2h

Electricity supply during daytime vs. blackouts at night

Daytime Optical voltage Available

Power flow (kW)

Photovolt+5.6

Batteries-2.1

Load-3.5

SOC Change Curve

Night Photovolt is not available

Power flow (kW)

Photovolt0.0

Batteries-5.4

Load-5.4

SOC Change Curve

System backup bottom line: SOC policy 20% ≥ (setable 10-30%)

Co-programming of energy mix Modes and Interlocks

Site Source

Optical Array

Energy Storage Systems

Grid Connection Status

Optional Generators

Run Mode (Auto Switch)

Networking Mode Prioritize spontaneous self-use and maintain backup SOC

Electricity mode Key load priority, dynamic load limit

Peak Mode Control photovoltaic and storage power when no grid

Black Start and Order Recovery Scheduling

1 Power grid's out. 0 ms

2 DC mainline maintained 10–60ms

3 PCS Start 50–120ms

4 Create an AC bus 120–200ms

5 Critical load up. 200–500ms

6 Restart Time 0.5–60s

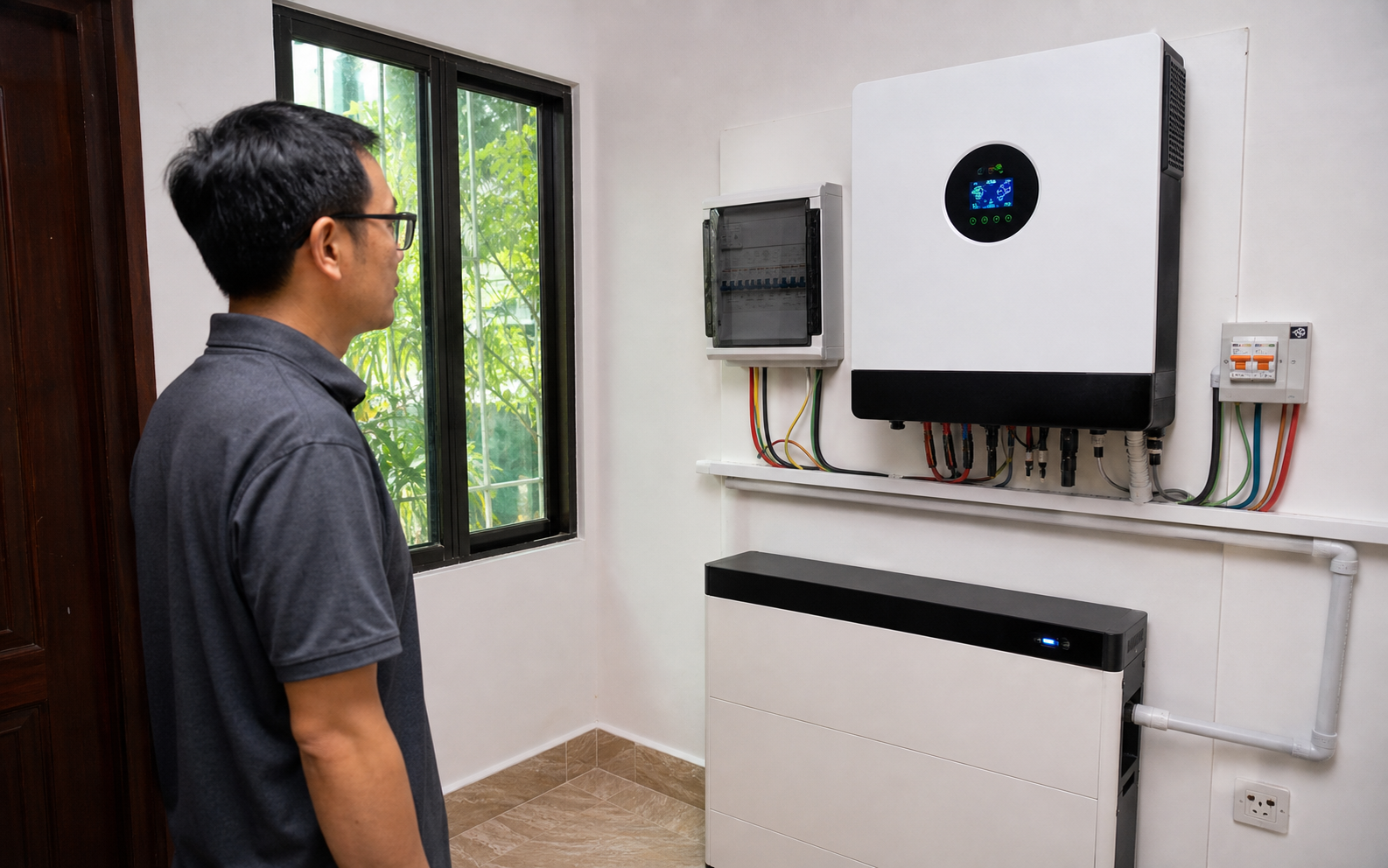

7 Electron grid-qualified windows >60s

8 Synchronization >60s

9 Full Restore Completed

Decline / Fault Logic Security priority

Fault	Trigger condition	System Actions	Restore Logic
Low battery SOC	SOC ≤ 20%	Cut unless critical load	SOC Post Recovery Phased Input
PCS not available	PCS failure / excessive temperature	Trip output and raise alarm	Restart after failure clearance
Communications anomaly	Data Interrupt	Enter local conservative mode	Synchronize after communication is restored
Overload	Power exceeding limit	Cache load by priority	Delay recovery after load drop
Photovoltal anomaly	PV Not Available	Conversion to pure battery energy	Reconnect after stabilization.

Delivery result: the grid comes back, not all of it immediately.

1 Check the grid. Voltage / Frequency Stable Sustained Fulfilment

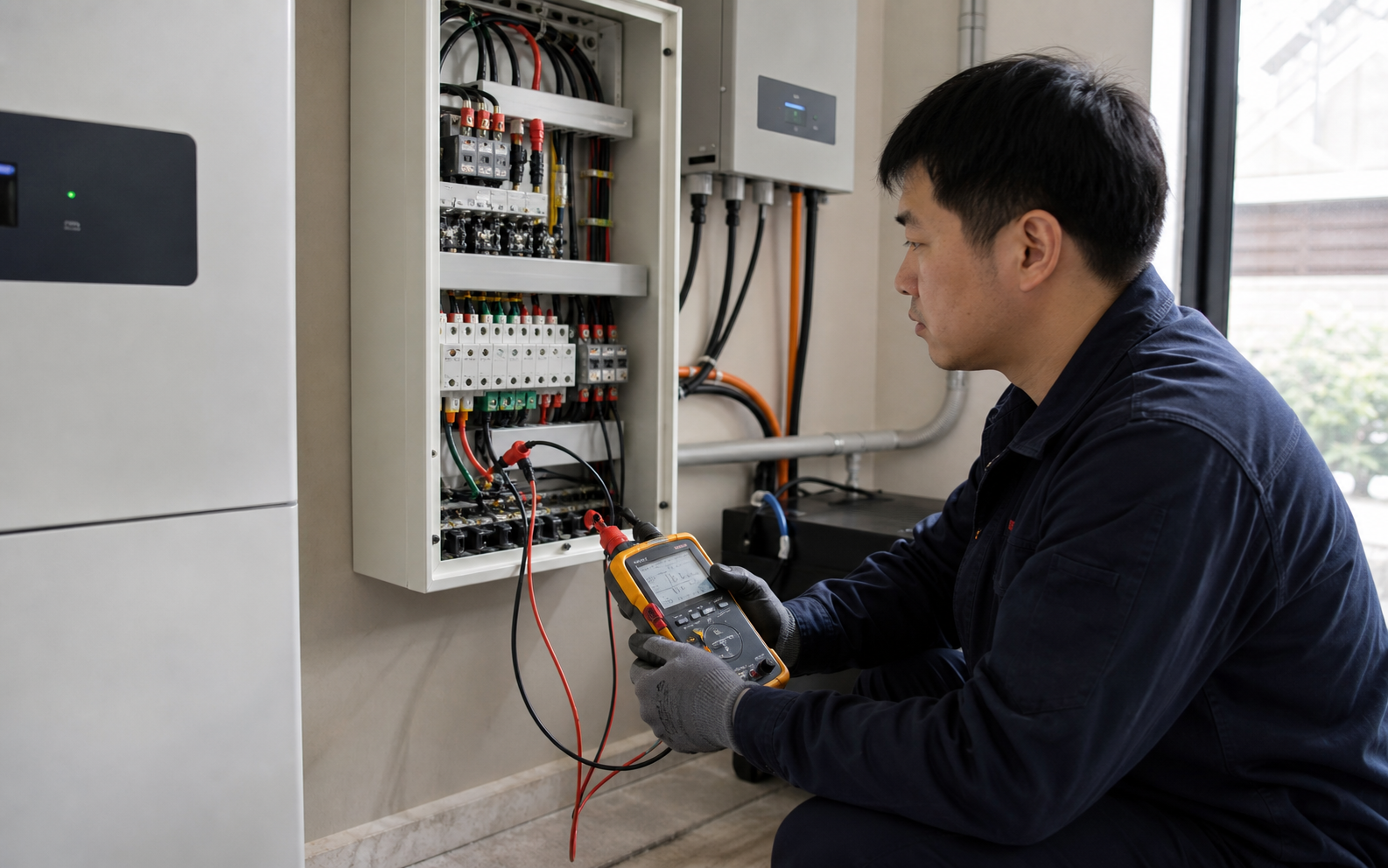

2 Phase / Frequency Sync Confirm Synchronization Window and Phase Bad

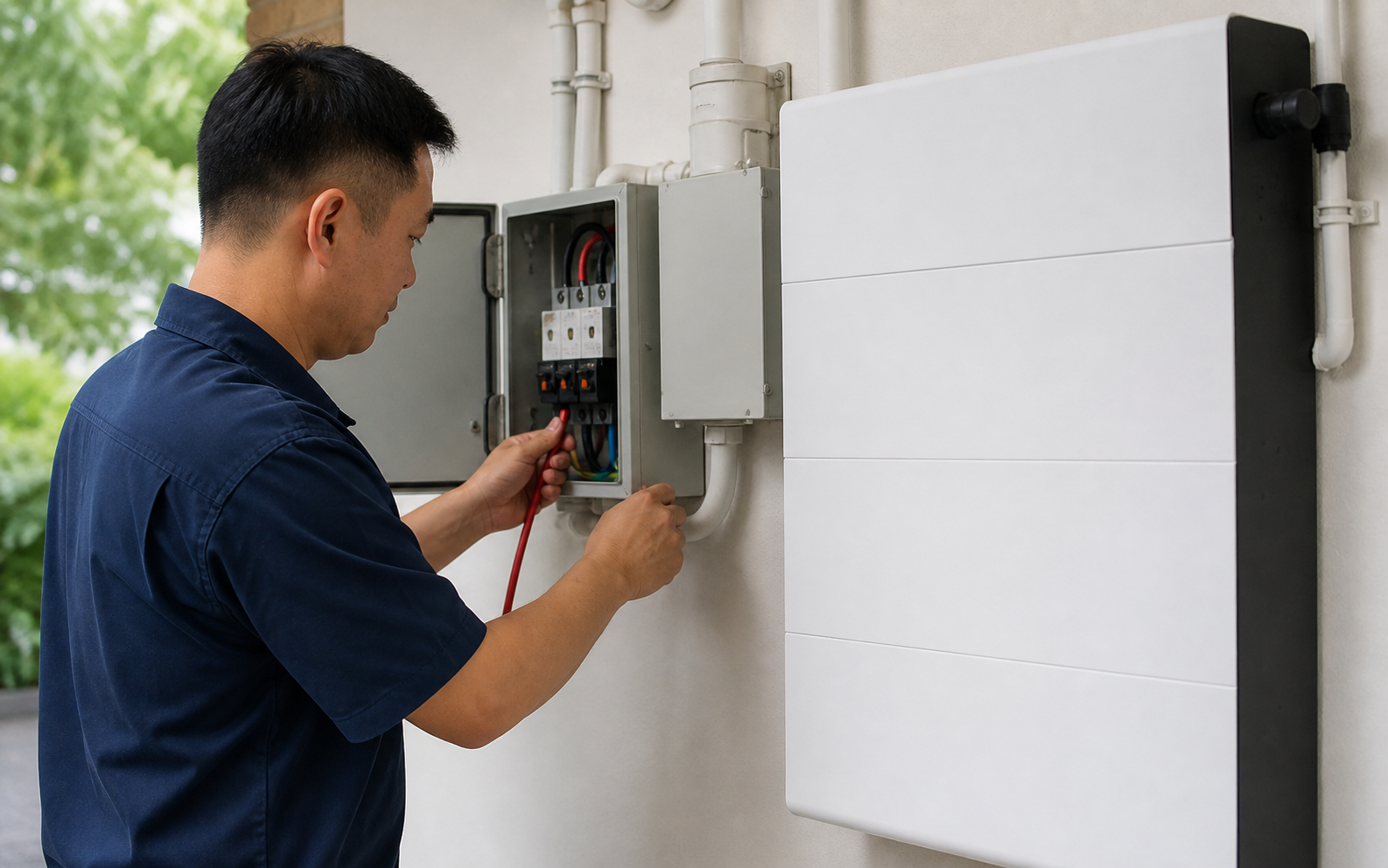

3 Synchronization ATS / PCS Execute Smooth Switch

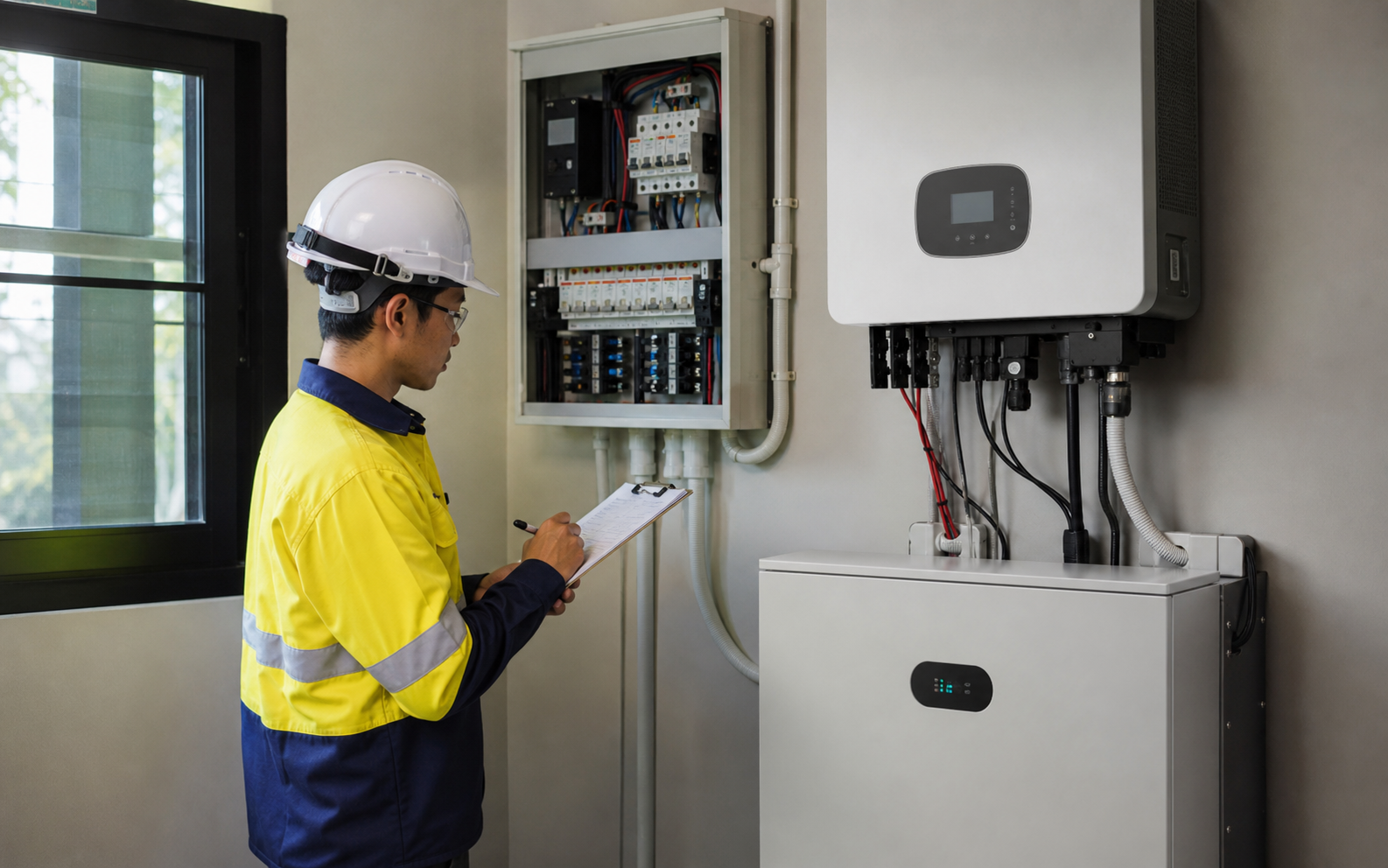

4 Partition Load Restore Zone A → Zone B → Zone C

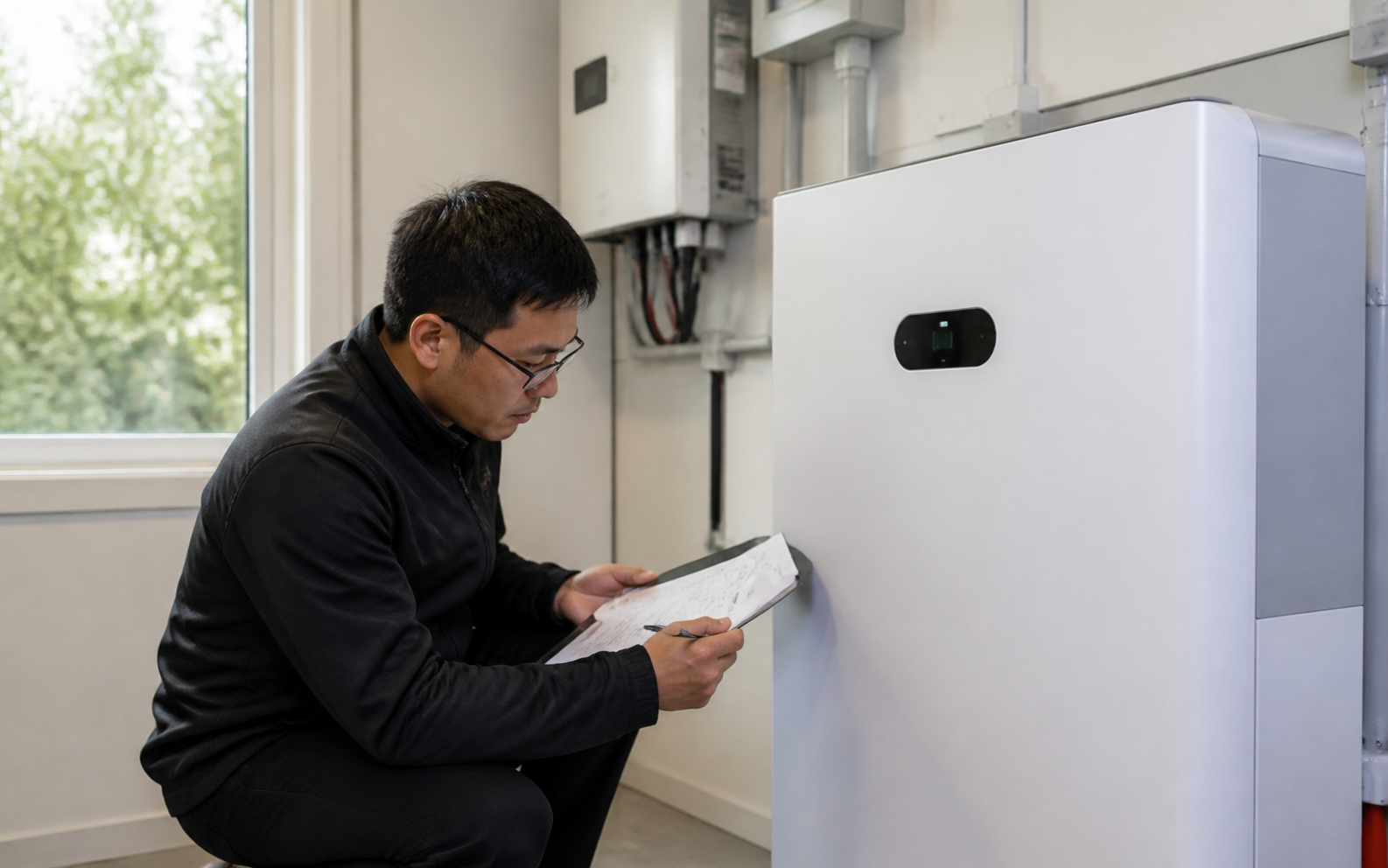

5 Recovery plan strategy Restore recharge target and normal SOC policy

Project installation and debugging process

• Site survey Power distribution, load, installation confirmation

2. Electrical distribution system design ATS, PCS, batteries, switchboard design

3 Container and equipment installation Batteries, PCS, containment cabinets in position.

4. Equipment connection AC / DC / Communication / ATS connection

5 Power outage simulation Simulate interruption and validate off-grid takeover

6. Restoration of testing Verify synchronizing grid and load restoration

7 User Training Run, report and maintain Training

Validation of records and delivery documents

Item	Standard / target	Actual value	Result
Switch Time	< 200ms	184ms	PASS
Offline RMS	230V ±5%	228.8V	PASS
Output Frequency	50 ±0.2Hz	50.00Hz	PASS
Critical load recovery	100%	100%	PASS
Sync Time	<180s	110s	PASS

NEXT STEP

Combine boundary and delivery path around Home Backup & Hybrid Storage

Programme configuration and implementation tempo can be further confirmed on the basis of on-site loads, netting conditions, installed space and transportation requirements.

Access to programme recommendations View Projects
